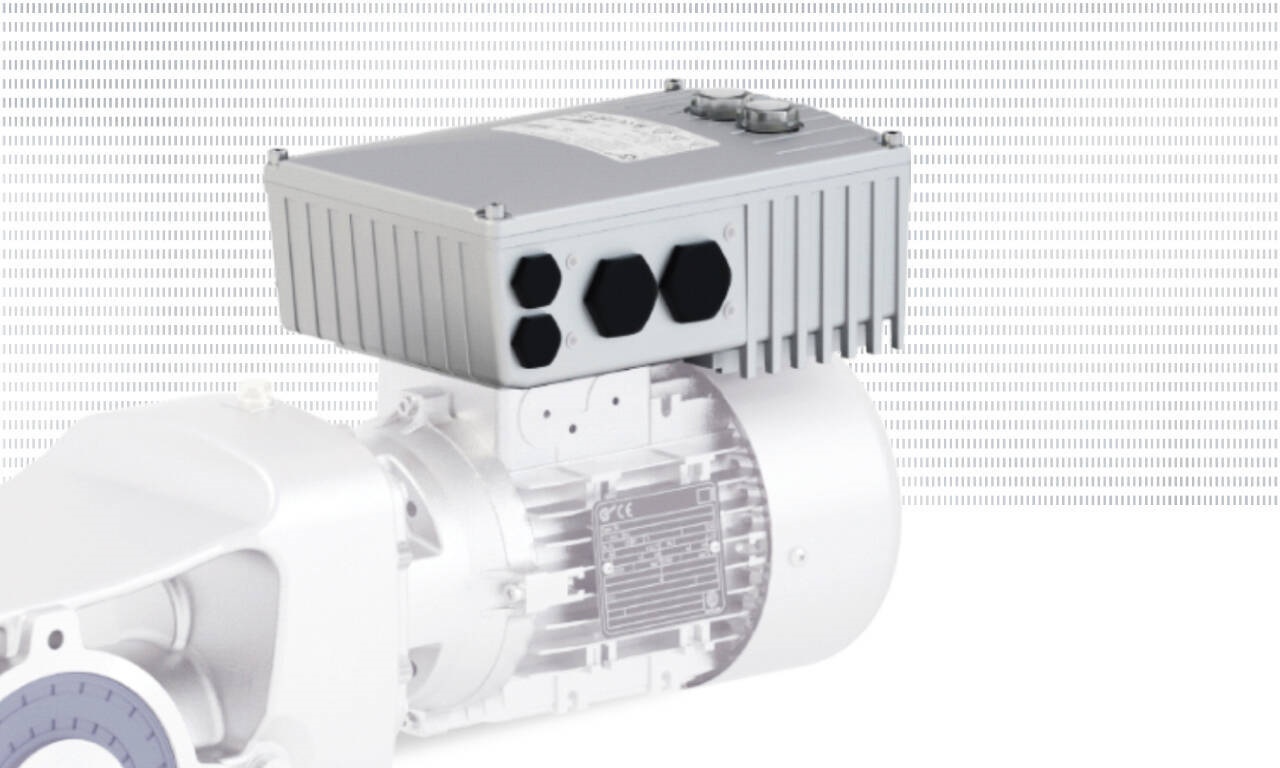

NORDAC START - SK 135E - Motor Starter
- Power range: 0.25 – 7.5 kW
- Protection class: IP55, IP66, IP69K
- Wall or motor mounting
- Surface treatment (nsd tupH)
The NORDAC START electronic motor starter is a decentralised wear-free electronic motor starter for all soft start applications. It is equipped with a reversing function and internal motor protection and can therefore be flexibly integrated into any system.
Versions
- Power range: 0.25 – 7.5 kW
- 3-phase 200 - 240 V, 3-phase 380 - 500 V
- Protection class: IP55, IP66, IP69K
- Motor-mounted, wall-mounted
Charateristics
- 2x Digital In, 2x Digital Out
- Parameterisation via plug-in control module, NORDCON software tool or app
- Reversing function
- Drive monitoring function including motor monitoring and motor thermistor evaluation
- Motor brake management
- Integrated line filter
- Asynchronous motor operation
